# Dockbix agent

## 一.概述

Dockbix意为docker+zabbix，即使用zabbix来监控docker容器的插件或者模块，既然有专业的cadvisor、prometheus等容器监控方案，为什么还要用传统的zabbix呢？

* 在docker刚出现时，还没有专业的容器监控方案
* 公司已有zabbix的成熟实践，想直接集成到zabbix中(虽然不太优雅)

使用zabbix来监控docker有几种方案，比如:

* 自己写agent，利用docker的api获取stats信息，暴露api接口给zabbix采集
* 使用zabbix的Module，将docker的采集展示集成到现有的zabbix系统中

## 如何使用

### 写API

python sdk：<https://docker-py.readthedocs.io/en/stable/containers.html#docker.models.containers.Container.stats>

```yaml
stats(**kwargs)
Stream statistics for this container. Similar to the docker stats command.

Parameters:
decode (bool) – If set to true, stream will be decoded into dicts on the fly. Only applicable if stream is True. False by default.
stream (bool) – If set to false, only the current stats will be returned instead of a stream. True by default.
Raises:
docker.errors.APIError – If the server returns an error.
```

如计算cpu：

```python
def calculate_cpu_percent(d):
    cpu_count = len(d["cpu_stats"]["cpu_usage"]["percpu_usage"])
    cpu_percent = 0.0
    cpu_delta = float(d["cpu_stats"]["cpu_usage"]["total_usage"]) - \
                float(d["precpu_stats"]["cpu_usage"]["total_usage"])
    system_delta = float(d["cpu_stats"]["system_cpu_usage"]) - \
                   float(d["precpu_stats"]["system_cpu_usage"])
    if system_delta > 0.0:
        cpu_percent = cpu_delta / system_delta * 100.0 * cpu_count
    return cpu_percent
```

### Zabbix Module

通过部署一个zabbix agent的docker容器来监控宿主机器和宿主机器上docker的状态。

搬运下开源项目：<https://github.com/monitoringartist/zabbix-docker-monitoring>

**1.在需要监控的宿主机器上运行运行Agent容器**

```bash
docker run \
  --name=dockbix-agent-xxl \
  --net=host \
  --privileged \
  -v /:/rootfs \
  -v /var/run:/var/run \
  --restart unless-stopped \
  -e "ZA_Server=<ZABBIX SERVER IP/DNS NAME/IP RANGE>" \
  -e "ZA_ServerActive=<ZABBIX SERVER IP/DNS NAME>" \
  -d monitoringartist/dockbix-agent-xxl-limited:latest
```

**2.配置监控模板**

在zabbix server上导入监控docker的模版，可用模板包括：

* [Zabbix-Template-App-Docker.xml](https://raw.githubusercontent.com/monitoringartist/zabbix-docker-monitoring/master/template/Zabbix-Template-App-Docker.xml) - 标准推荐模板：被动
* [Zabbix-Template-App-Docker-active.xml](https://raw.githubusercontent.com/monitoringartist/zabbix-docker-monitoring/master/template/Zabbix-Template-App-Docker-active.xml) - 检查模板：主动
* [Zabbix-Template-App-Docker-Mesos-Marathon-Chronos.xml](https://raw.githubusercontent.com/monitoringartist/zabbix-docker-monitoring/master/template/Zabbix-Template-App-Docker-Mesos-Marathon-Chronos.xml) - Mesos (Marathon/Chronos)集群的docker模板&#x20;

也可以用docker镜像直接运行，来导入模板：[monitoringartist/zabbix-templates](https://hub.docker.com/r/monitoringartist/zabbix-templates/)，如：

```bash
docker run --rm \
  -e XXL_apiurl=http://zabbix.org/zabbix \
  -e XXL_apiuser=Admin \
  -e XXL_apipass=zabbix \
  monitoringartist/zabbix-templates
```

item为：

![](http://www.xuyasong.com/wp-content/uploads/2019/05/15541225490693.jpg)

详细的metric的值可以参考：<https://github.com/monitoringartist/zabbix-docker-monitoring/blob/master/README.md>

**3.可视化**

zabbix的监控图：

![](http://www.xuyasong.com/wp-content/uploads/2019/05/15541257580098.jpg)

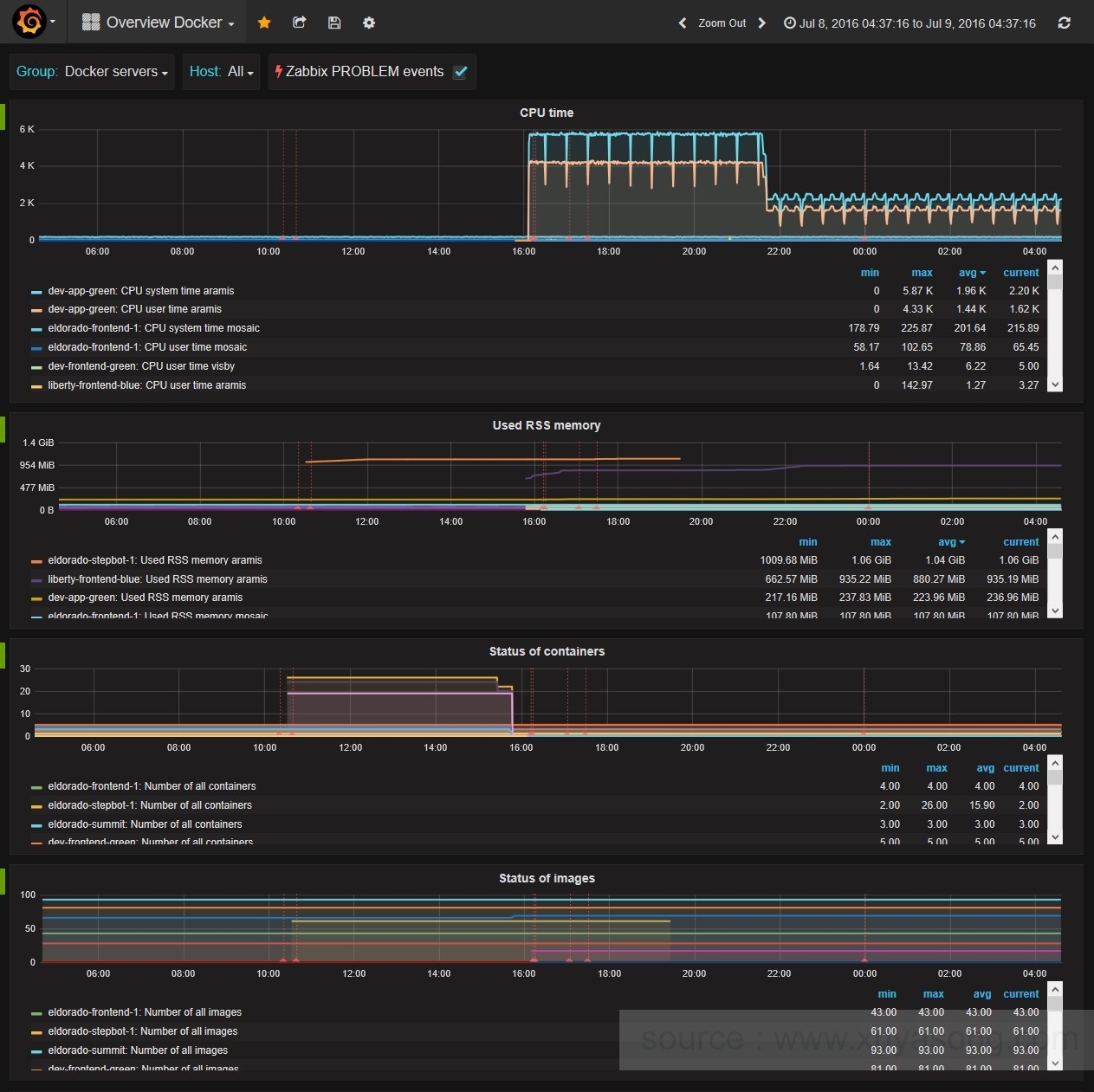

grafana中也有zabbix的[数据模板](https://github.com/monitoringartist/grafana-zabbix-dashboards)

![](http://www.xuyasong.com/wp-content/uploads/2019/05/15541258462560.jpg)

本文为容器监控实践系列文章，完整内容见：[container-monitor-book](https://yasongxu.gitbook.io/container-monitor/)


---
