一.概述

cortex:一个支持多租户、水平扩展的prometheus服务。

当时调研cortex其实是因为看到了Weave Cloud这个商业产品中的监控模块介绍,weave也叫weave works,官方地址是:,是一个专注于容器微服务的paas平台。

WeaveCloud在监控模块最大化利用了Prometheus,并在其基础上添加了很多组件,实现了多租户管理、高可用的监控集群。其使用的核心监控组件就是cortex。

本文主要分享的是cortex的运行机制,关于Weave Cloud的产品定位和功能可以看下后续的文章:

Cortex是一个CNCF的沙盒项目,目前被几个线上产品使用:Weave Cloud、GrafanaCloud和FreshTracks.io

为什么不直接运行Prometheus,而用Cortex?

ps:来自cortex kubecon大会演讲

  • 作为服务,cortex提供了鉴权和访问控制

  • 数据永久保留,状态能够被管理

  • 提供持久化、高可用、伸缩性

  • 提供更好的查询效率,尤其是长查询

二.主要功能

针对以上需求,Cortex提供的主要功能或特色如下:

  • 支持多租户:Prometheus本身没有的租户概念。这意味着,它无法对特定于租户的数据访问和资源使用配额,提供任何形式的细粒度控制。Cortex可以从多个独立的prometheus实例中获取数据,并按照租户管理。

  • 长期存储:基于远程写入机制,支持四种开箱即用的长期存储系统:AWS DynamoDB、AWS S3、Apache Cassandra和Google Cloud Bigtable。

  • 全局视图:提供所有prometheus server 整合后的时间序列数据的单一,一致的“全局”视图。

  • 高可用:提供服务实例的水平扩展、联邦集群等

  • 最大化利用了Prometheus

相似的竞品:

  • Prometheus + InfluxDB:使用InfluxData

  • Prometheus + Thanos:长期存储、全局视图

  • Timbala:多副本、全局视图,作者是Matt Bostock

  • M3DB:自动扩缩容,来自uber

产品形态

ps:来自weave work上试用监控模块时的截图

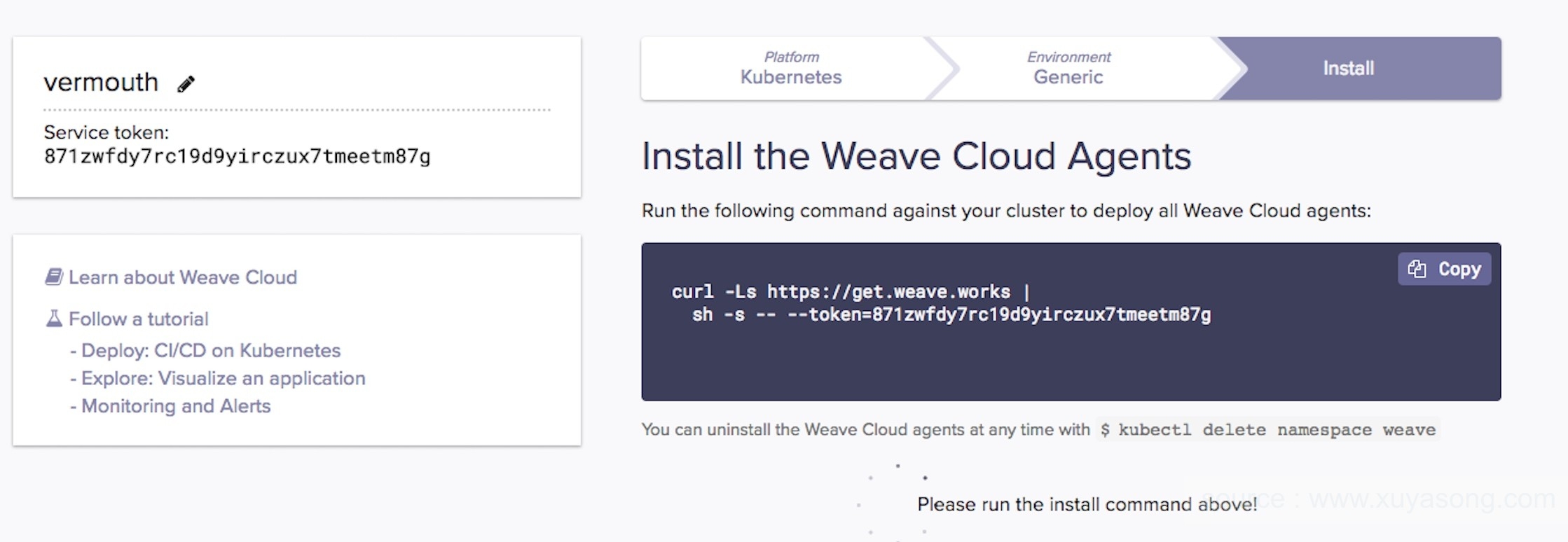

  • 1.安装监控的agent:

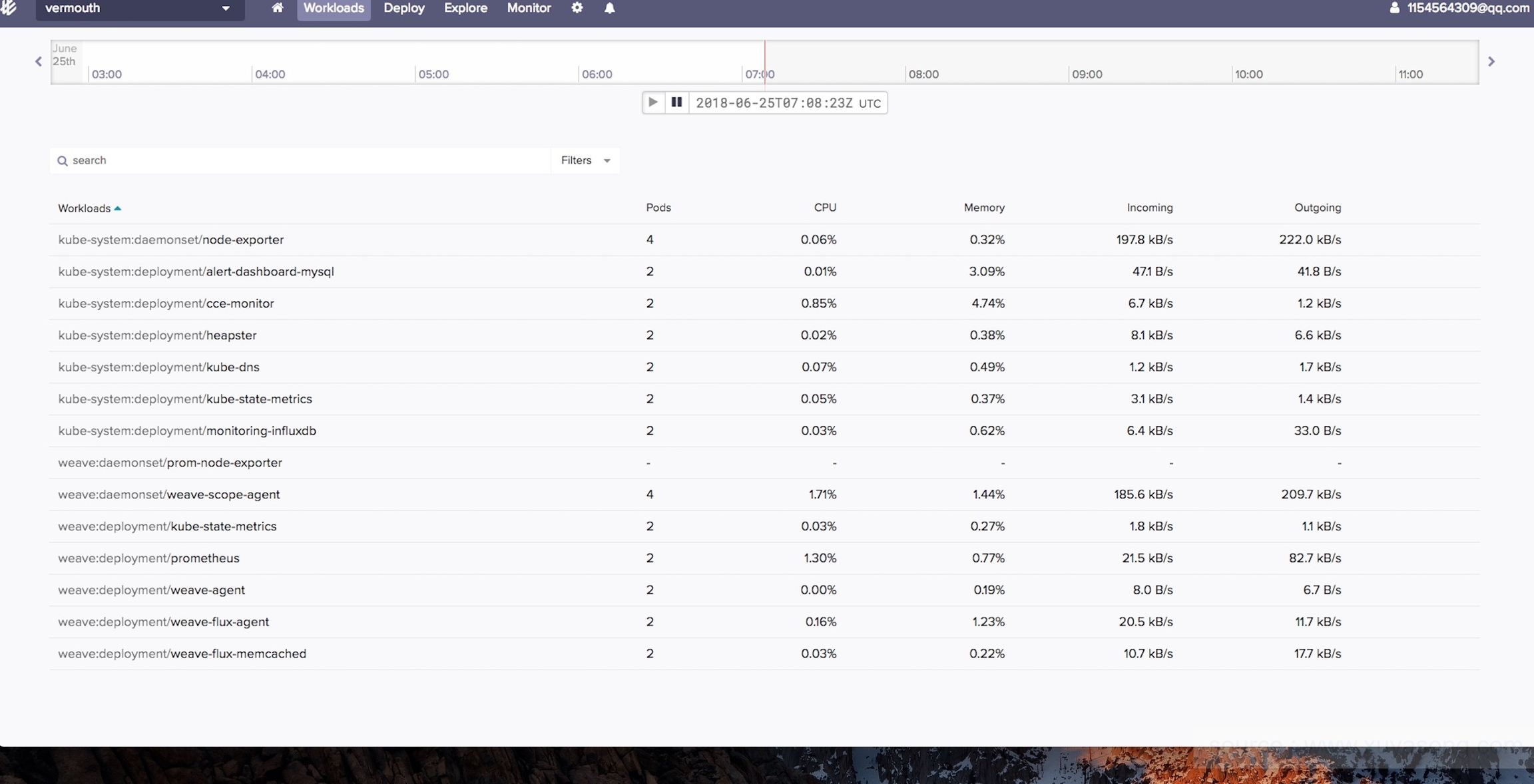

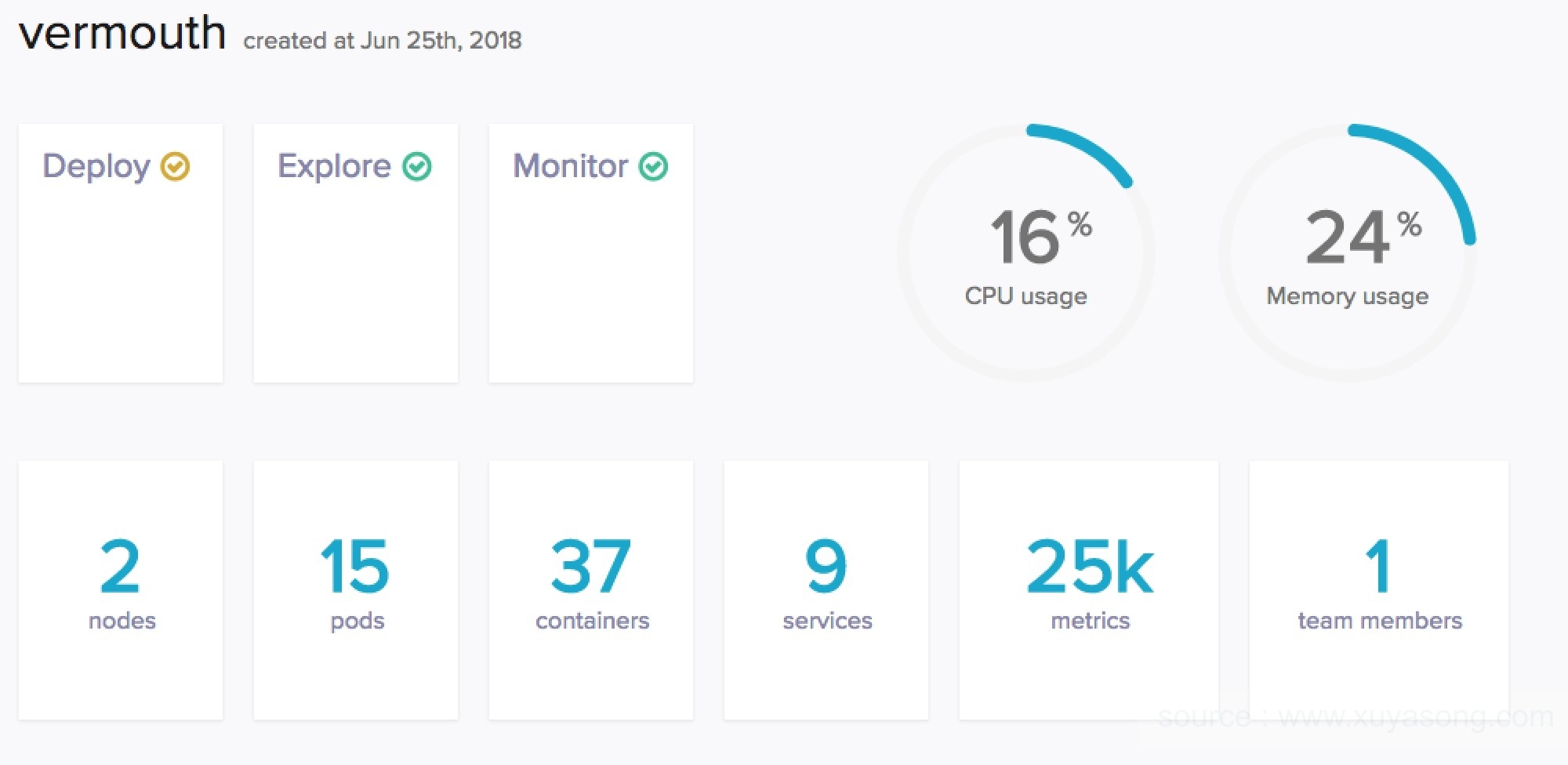

  • 2.概览视图

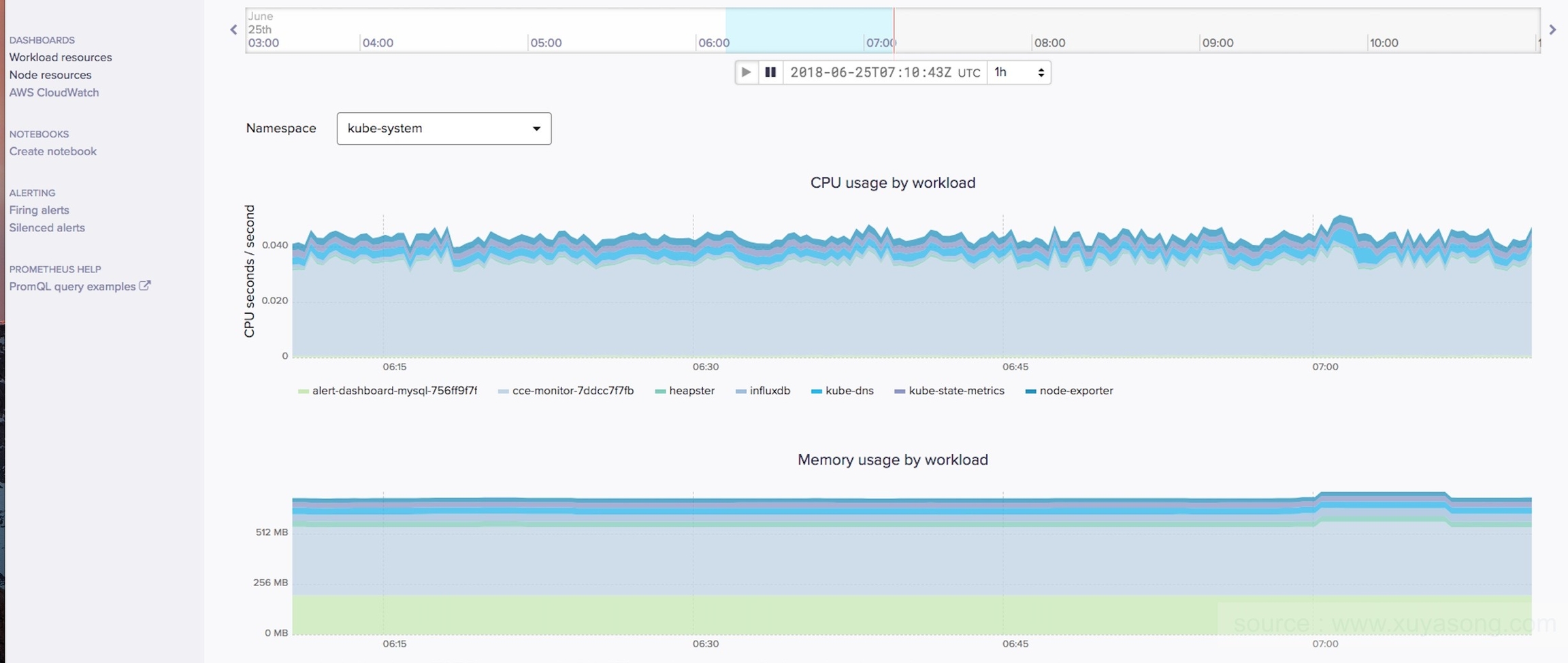

  • 3.资源监控面板

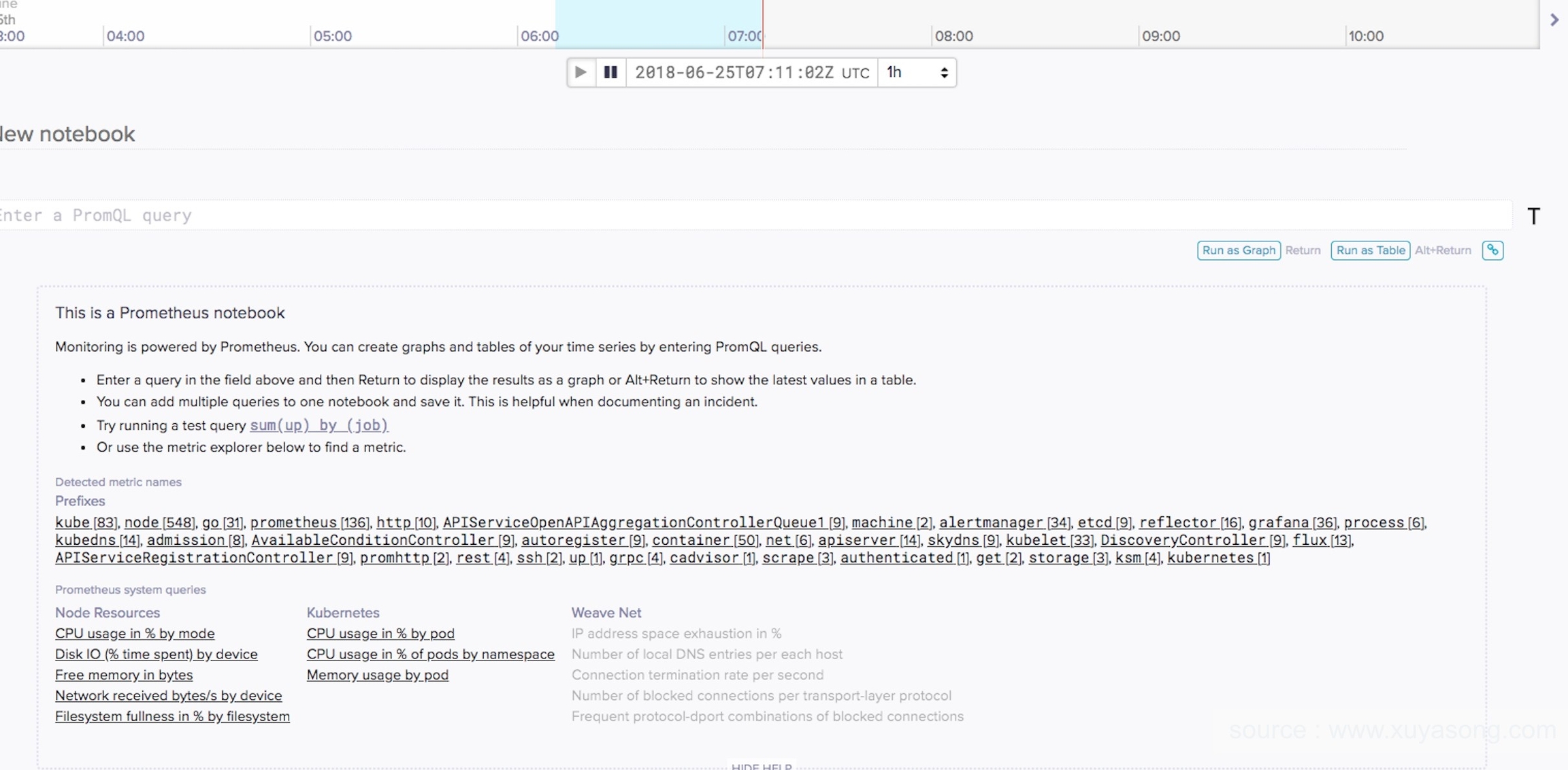

  • 4.监控详情页面

  • 5.添加监控

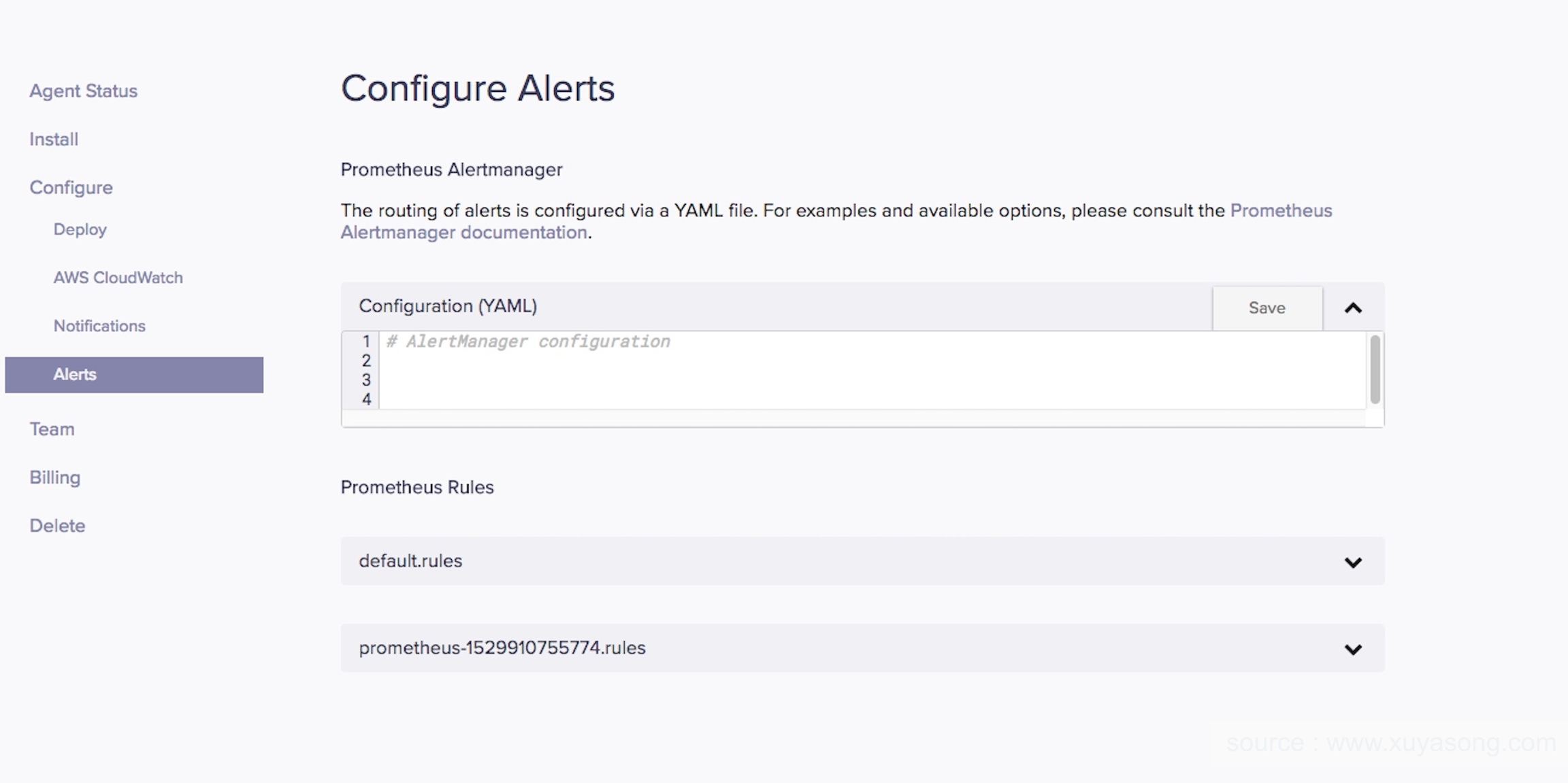

  • 6.配置报警

在k8s集群中部署所需要的yaml列表为:

部署的agent时的脚本内容是:

#!/bin/sh
set -e
# Create a temporary file for the bootstrap binary
TMPFILE="$(mktemp -qt weave_bootstrap.XXXXXXXXXX)" || exit 1
finish(){
  # Send only when this script errors out
  # Filter out the bootstrap errors
  if [ $? -ne 111 ] && [ $? -ne 0 ]; then
    curl -s >/dev/null 2>/dev/null -H "Accept: application/json" -H "Authorization: Bearer $token" -X POST -d \
        '{"type": "onboarding_failed", "messages": {"browser": { "type": "onboarding_failed", "text": "Installation of Weave Cloud agents did not finish."}}}' \
        https://cloud.weave.works/api/notification/external/events || true
  fi
  # Arrange for the bootstrap binary to be deleted
  rm -f "$TMPFILE"
}
# Call finish function on exit
trap finish EXIT
# Parse command-line arguments
for arg in "$@"; do
    case $arg in
        --token=*)
            token=$(echo $arg | cut -d '=' -f 2)
            ;;
    esac
done
if [ -z "$token" ]; then
    echo "error: please specify the instance token with --token=<TOKEN>"
    exit 1
fi
# Notify installation has started
curl -s >/dev/null 2>/dev/null -H "Accept: application/json" -H "Authorization: Bearer $token" -X POST -d \
    '{"type": "onboarding_started", "messages": {"browser": { "type": "onboarding_started", "text": "Installation of Weave Cloud agents has started"}}}' \
    https://cloud.weave.works/api/notification/external/events || true
# Get distribution
unamestr=$(uname)
if [ "$unamestr" = 'Darwin' ]; then
    dist='darwin'
elif [ "$unamestr" = 'Linux' ]; then
    dist='linux'
else
  echo "This OS is not supported"
  exit 1
fi
# Download the bootstrap binary
echo "Downloading the Weave Cloud installer...  "
curl -Ls "https://get.weave.works/bootstrap?dist=$dist" >> "$TMPFILE"
# Make the bootstrap binary executable
chmod +x "$TMPFILE"
# Execute the bootstrap binary
"$TMPFILE" "--scheme=https" "--wc.launcher=get.weave.works" "--wc.hostname=cloud.weave.works" "--report-errors" "$@"

三.实现原理

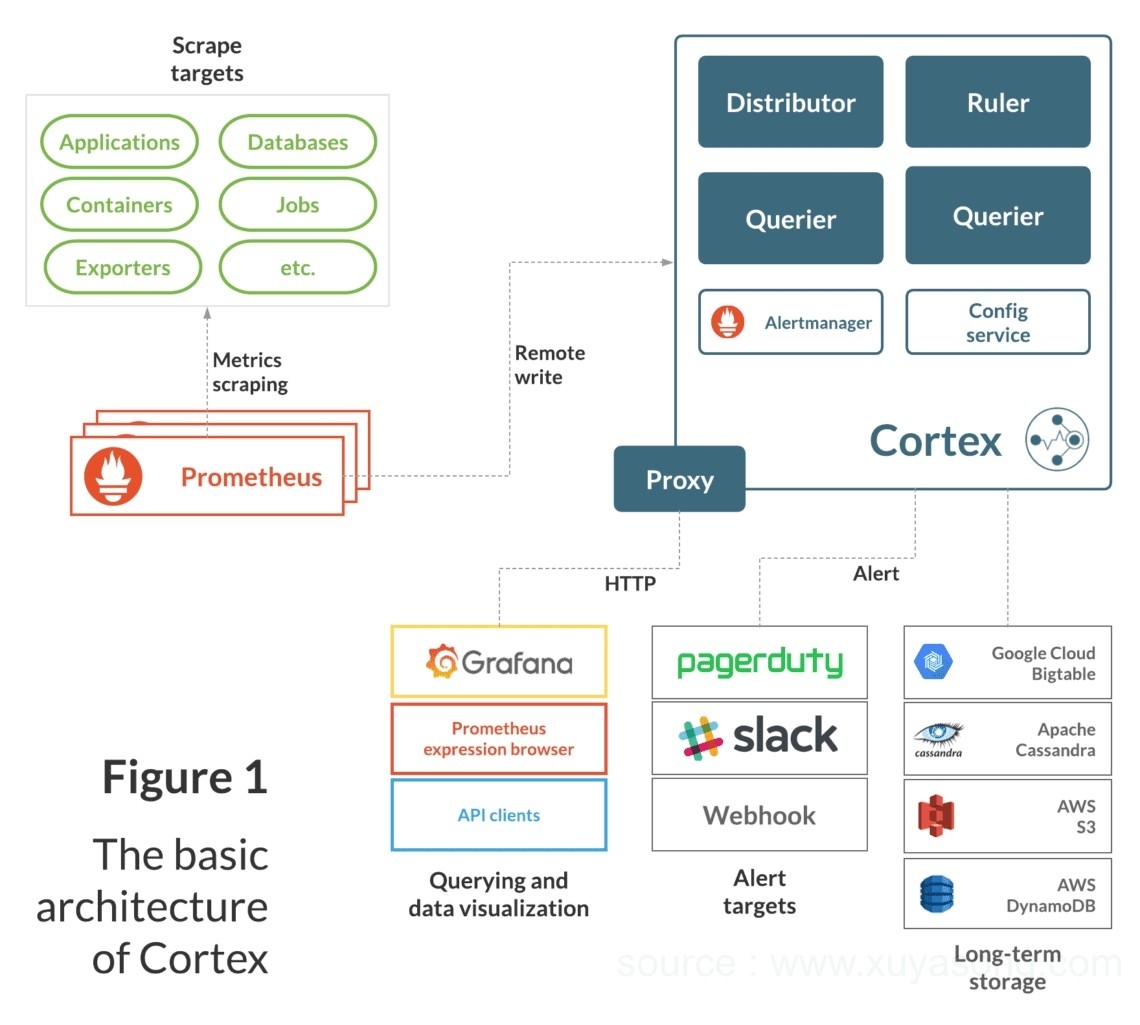

Cortex与Prometheus的交互图:

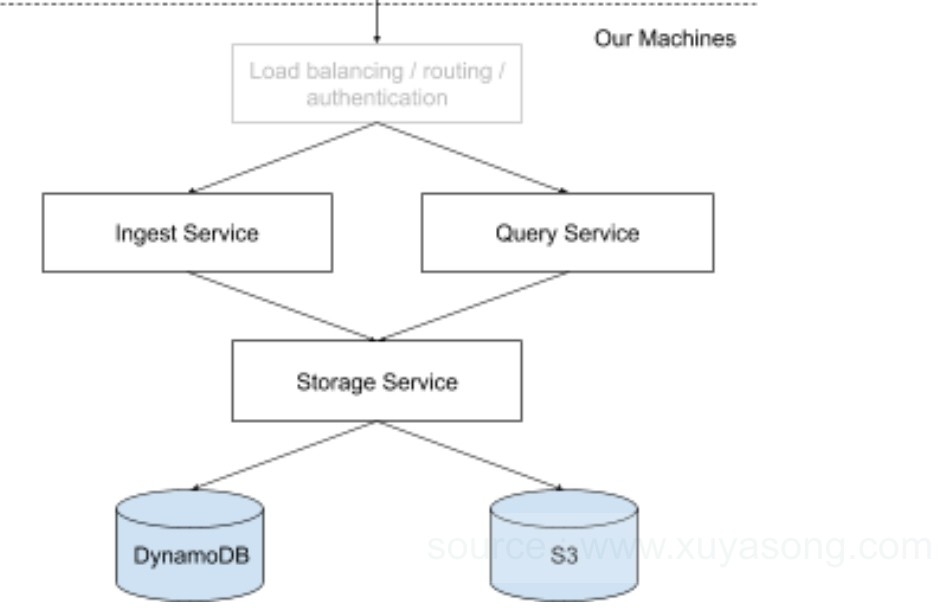

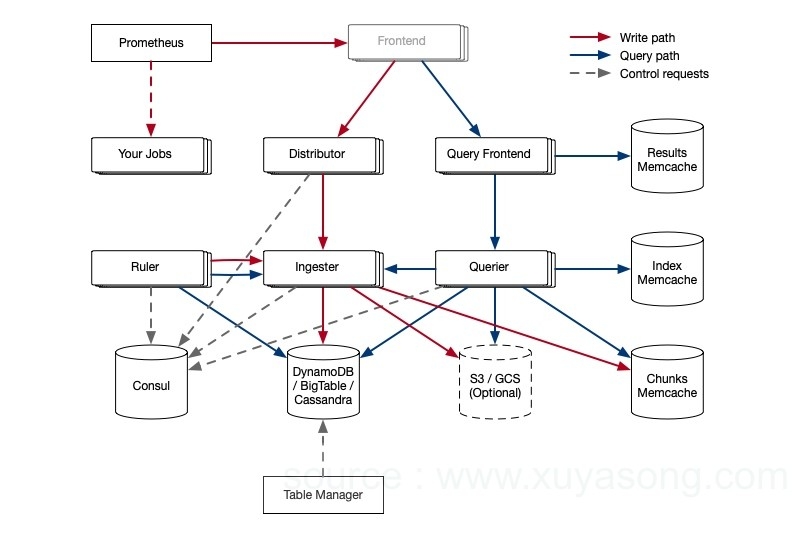

原理图:

Cortex中各组件的作用:

  • Retrieval:采集组件,运行在用户k8s集群上,从用户应用中拉取监控指标,并把这些数据推送给云平台的服务

  • Frontend: 负载均衡/路由转发/权限认证,接受Retrieval发送来的请求,这里用的nginx

  • Distributor:分发器,把用户推送来的监控指标,按照用户id、指标名称、标签做一致性hash,然后并行交给后面的多个ingester处理(grpc交互)。是监控数据写入的第一站

  • Ingester:处理器,将监控数据保存到promtheus中,高度定制了MemorySeriesStorage模块,分块存储、写入内存并索引(使用AWS的DynamoDB产品),最后写入磁盘

  • 读写分离:ingest和query分开为两个服务

Cortex由多个可水平扩展的微服务组成。每个微服务使用最合适的技术进行水平缩放; 大多数是无状态的,而有些(即Retrieval)是半有状态的并且依赖于一致性哈希

Prometheus实例从各种目标中抓取样本,然后将它们推送到Cortex(使用Prometheus的远程写入API),并对发送的Protocol Buffers序列化数据进行Snappy压缩。

Cortex要求每个HTTP请求都带有一个header,用于指定请求的租户ID。请求身份验证和授权由外部反向代理处理。

传入的样本(来自Prometheus的写入)由Distributor处理,而传入的读取(PromQL查询)由查询前端处理。

查询缓存:

查询时会缓存存查询结果,并在后续查询中复用它们。如果缓存的结果不完整,则查询前端计算所需的子查询并在下游查询器上并行执行它们。

并发查询:

查询作业接受来自查询器的gRPC流请求,为了实现高可用性,建议您运行多个前端,且前端数量少于查询器数量。在大多数情况下,两个应该足够了。

技术方案实现讨论细节:

CNCF TOC:

kubecon 大会讲稿:

本文为容器监控实践系列文章,完整内容见:
